1. Working principle

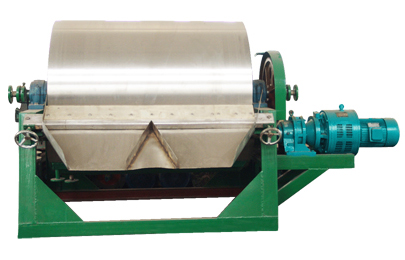

The drum flake machine is a cooling and crystallization process. The molten material in the tray is in contact with the cooled drum, and a material film is formed on the surface of the drum. Through the heat exchange between the material film and the strand wall, the material film is cooled, crystallized and crystallized. The material film is scraped off by a scraper and becomes a sheet product.

Drum drying is a continuous process of heating and drying the materials or strips attached to the outer wall of the drum by means of heat transfer through the rotating drum.

2. Equipment characteristics

Performance reached the level of foreign equipment in the 1990s

Equipped with a side scraper to avoid material accumulation on the side of the drum

The equipment has a compact structure and a small footprint

Half pipe jacketed tray, safe and reliable

Atomized cooling, good cooling effect

Continuously variable speed, adjustable drum speed

High drum accuracy

Wide application range, easy and flexible operation

Using multiple groups of scrapers, flexible adjustment

Multi-functional, both flakes and drying

Third, the scope of application

1. Flake: Polyethylene oligomer, petroleum resin, oxidized polyethylene and other polymer products such as phthalic anhydride, maleic anhydride, naphthalene, pingjia, fatty alcohol, chloroacetic acid, tricarboxymethylpropane, guanidine nitrate, bisphenol, Organic chemical products such as isophthalic acid, inorganic chemical products such as soda sulfide, caustic soda, sodium hydrosulfide, calcium chloride, etc.

2. Drying: Paste dyes such as sulfide blue and sulfide, inorganic solutions such as sodium dihydrogen sulfate, sodium phosphate, magnesium chloride, and food solutions such as skimmed milk and milk.

4. Equipment specifications and main parameters
