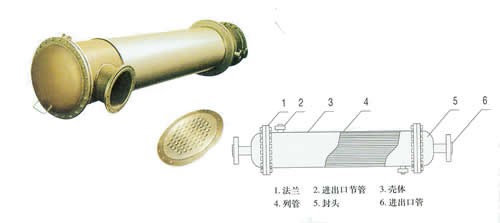

Pipe bundle condenser
The tube condenser produced by our factory is divided into three types: carbon steel tube condenser, stainless steel tube condenser and carbon steel and stainless steel mixed tube condenser according to the material. According to the form, they are divided into fixed tube plate type, floating head type, U Type tube heat exchangers are divided into single tube pass, double tube pass and multi tube pass according to their structure. The heat transfer area is 0.5-500m2, which can be customized according to user needs.
| Nominal diameter | Number of tubes | Number of tubes | Heat exchange area nominal value/calculated value | The cross-sectional area of the tube pass The flow rate when the flow velocity of the tube pass is 0.5m/sec m/hr |
Nominal pressure |
|||||
| Length of tube (m) | φ25×2.5 | |||||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | φ25×2 | |||||
| 159 | 1 | 14 | 1.5/1.62 | 22.17 | 33.27 | 0.0044/0.0049 | 7.92/8.82 | 0.25 | ||
| 219 | 1 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.1 | 0.0082/0.0090 | 14.76/16.20 | 0.6 | |
| 2 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.81 | 0.0041/0.0045 | 7.38/8.01 | 1.0 | ||
| 273 | 1 | 44 | 5/5.08 | 7/5.18 | 10/10.26 | 14/13.72 | 21/20.63 | 0.0138/0.0152 | 24.84/27.36 | 1.6 |
| 2 | 40 | 5/4.62 | 6/6.19 | 9/9.33 | 12/12.47 | 19/18.76 | 0.0063/0.0069 | 11.24/12.42 | 2.5 | |
| 325 | 1 | 60 | 7/6.93 | 9/9.28 | 14/14.00 | 19/18.71 | 28/28.13 | 0.0188/0.0208 | 33.84/37.44 | 0.6 |
| 2 | 56 | 6/6.47 | 9/8.66 | 13/13.05 | 17/17.46 | 36/26.26 | 0.0088/0.0097 | 15.84/17.46 | 1.0 | |
| 400 | 1 | 119 | 14/13.47 | 18/18.41 | 28/27.76 | 37/37.10 | 55/55.8 | 0.0374/0.0412 | 67.32/74.16 | 1.6 |
| 2 | 110 | 13/12.70 | 17/17.02 | 26/25.66 | 34/34.20 | 50/51.58 | 0.0173/0.0190 | 31.14/34.20 | 2.5 | |
| 500 | 1 | 185 | 45/4.15 | 55/57.68 | 85/86.74 | 0.0581/0.0641 | 104.58/115.38 | |||
| 2 | 180 | 40/41.99 | 55/57.68 | 85/86.74 | 0.0283/0.0312 | 50.94/56.16 | ||||
| 600 | 1 | 269 | 60/62.7 | 85/83.88 | 125/126.13 | 0.0845/0.0932 | 152.10/167.76 | |||
| 2 | 266 | 60/32.05 | 80/82.94 | 125/14.72 | 0.0418/0.0461 | 75.24/83.98 | ||||
| 700 | 1 | 379 | 90/88.41 | 120/118.17 | 175/177.71 | 0.0091/0.1313 | 214.38/236.34 | |||
| 2 | 358 | 85/83.51 | 110/111.62 | 165/167.85 | 0.0562/0.0620 | 101.16/111.60 | ||||
| 800 | 1 | 511 | 120/119.20 | 160/159.16 | 240/239.60 | 0.1605/0.1770 | 288.90/318.60 | |||
| 2 | 488 | 115/113.83 | 150/152.16 | 230/228.81 | 0.0767/0.0845 | 138.06/152.10 | ||||
| 900 | 1 | 649 | 150/151.39 | 200/202.36 | 305/304.3 | 0.2039/0.2248 | 367.02/404.46 | |||
| 2 | 630 | 145/146.96 | 195/196.44 | 295/295.40 | 0.0990/0.1091 | 178.20/196.38 | ||||
| 1000 | 1 | 805 | 185/187.78 | 250/251.00 | 375/377.45 | 0.2529/0.2788 | 455.22/501.74 | |||
| 2 | 792 | 185/184.75 | 245/246.95 | 370/371.36 | 0.1244/0.1374 | 223.92/246.96 | ||||
