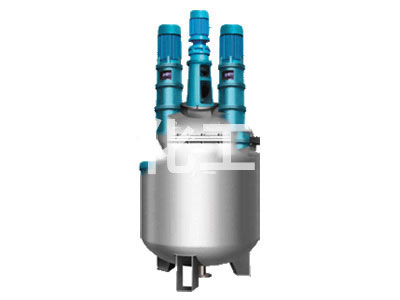

Multifunctional dispersion reactor
The multifunctional dispersing reaction kettle integrates low-speed strong stirring and high-speed dispersing functions in one, and has good adaptability to medium, high viscosity and thixotropic materials. Due to the stirring, the dispersion can be carried out at the same time, and the desired effect can be obtained. This machine is suitable for mixing, dissolving, dispersing and mixing various materials. It has simple operation and strong adaptability. It is an ideal mixing and dispersing equipment.
| Parameter | Model | |||||||
| FS-2 | FS-3 | FS-5 | FS-6 | FS-8 | FS-10 | FS-12 | ||
| Volume m3 | 2 | 3 | 5 | 6 | 8 | 10 | 12 | |
| Stirring power kw | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 13 | 14.3 | |
| Stirring speed r/min | 50 | 50 | 50 | 50 | 41 | 41 | 41 | |
| Stirrer diameter mm | 1300 | 1500 | 1700 | 1700 | 1900 | 2100 | 2300 | |
| Dispersion speed r/min | ||||||||
| Dispersion power kw | 13/16 | 13/16 | 22/24 | 22/28 | 22/28 | 26/34 | 30/42 | |
| Number of scattered disks | 2 | 4 | 4 | 4 | 4 | 6 | 6 | |
| Dimensions | D mm | 1400 | 1600 | 1600 | 1800 | 2000 | 2200 | 2400 |
| M1 mm | 1650 | 1765 | 2040 | 2400 | 2400 | 2950 | 3100 | |
| M2 mm | 1900 | 2000 | 2200 | 2500 | 2500 | 2570 | 2620 | |
